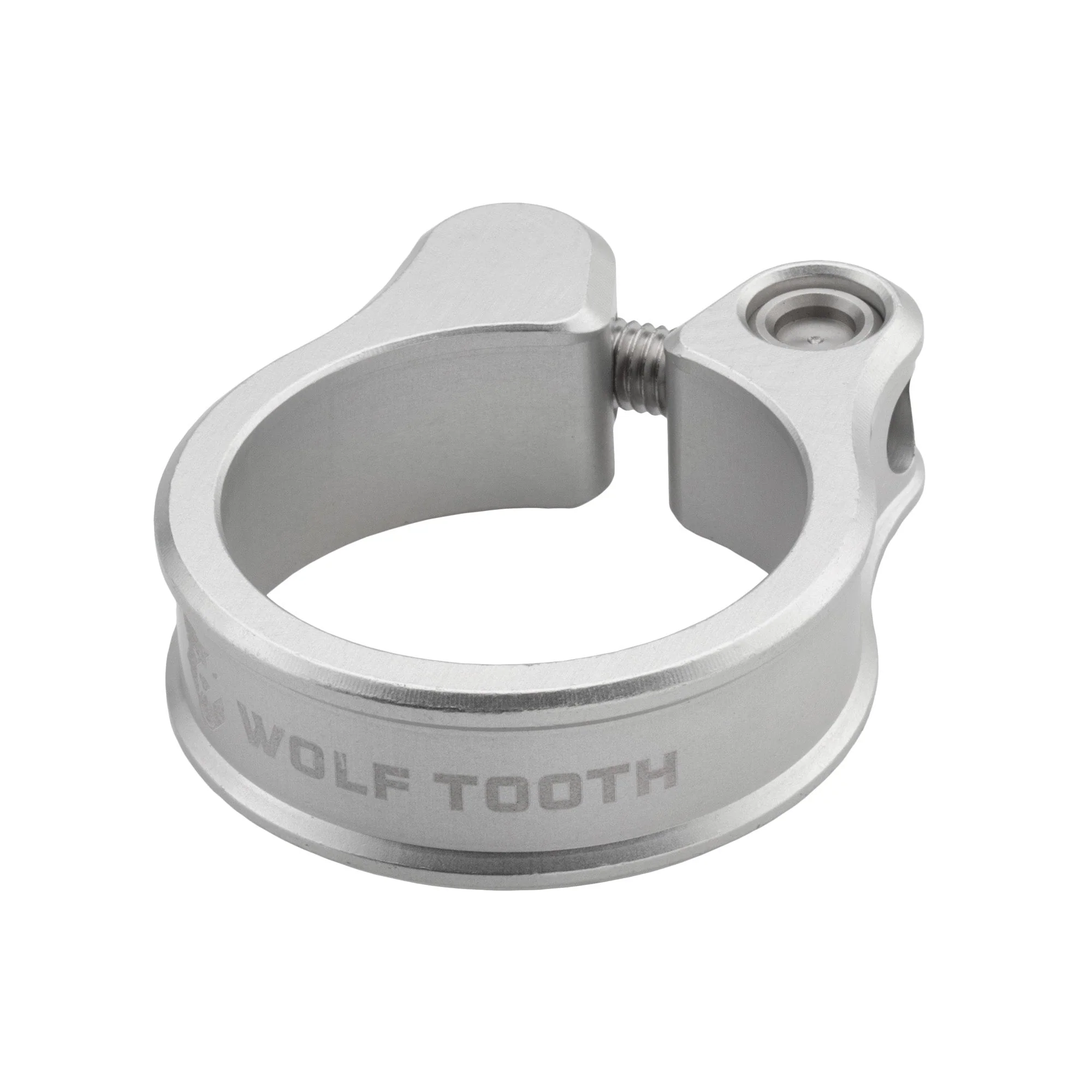

Seatpost Clamp - Silver - 28.6mm

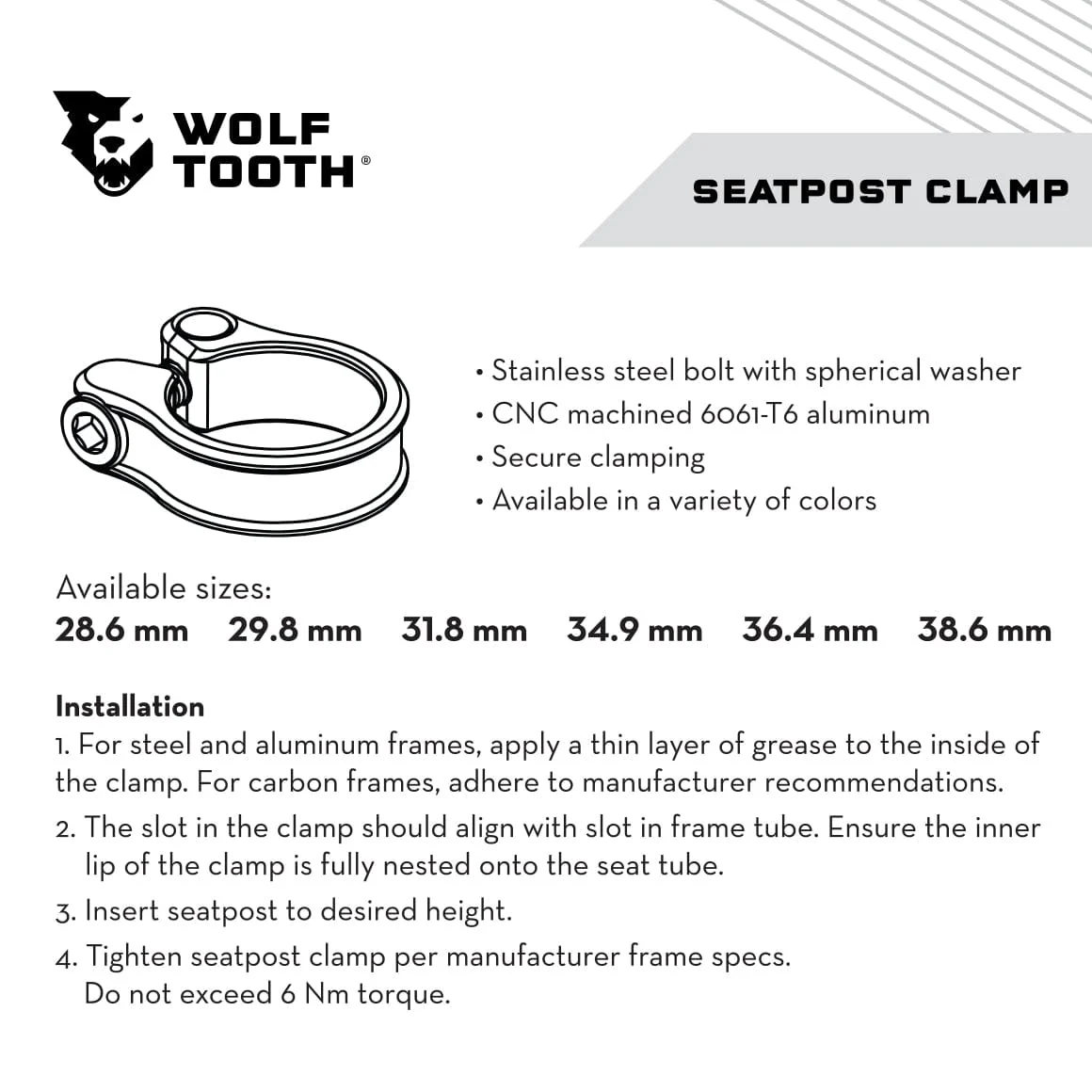

The precision-engineered Wolf Tooth Seatpost Clamp secures your seatpost and looks good doing it. At the heart of this seatpost collar are our custom self-aligning bolt and anchor. The M5 bolt includes spherical washer and mates with a cylindrical anchor barrel. This means that threads are always perfectly aligned, preventing binding and ensuring consistent clamping force.

Machined from 6061 aluminum in our Minneapolis facility.

Compatibility

Clamping Diameter:

• 28.6mm/29mm
• 29.8mm/30mm
• 31.8mm/32mm
• 34.9mm/35mm
• 36.4mm
• 38.6mm/39mm
• 39.7/40.0mm

Frames may vary slightly from the nominal diameters due to tolerances and paint thickness. Clamps will fit on frames that are within +/- 0.5mm of specified size. For example, a 34.9mm clamp will fit frames with a seat tube measuring from 34.4mm to 35.4mm in diameter.

Clamping height: 13.5mm

Not compatible with older Ibis carbon bike frames that use a proprietary curved seat collar. Compatible with new carbon Ibis frames that use a conventional seat post clamp including Ripley V5, Ripmo V3, DV9 V2 and HD6.

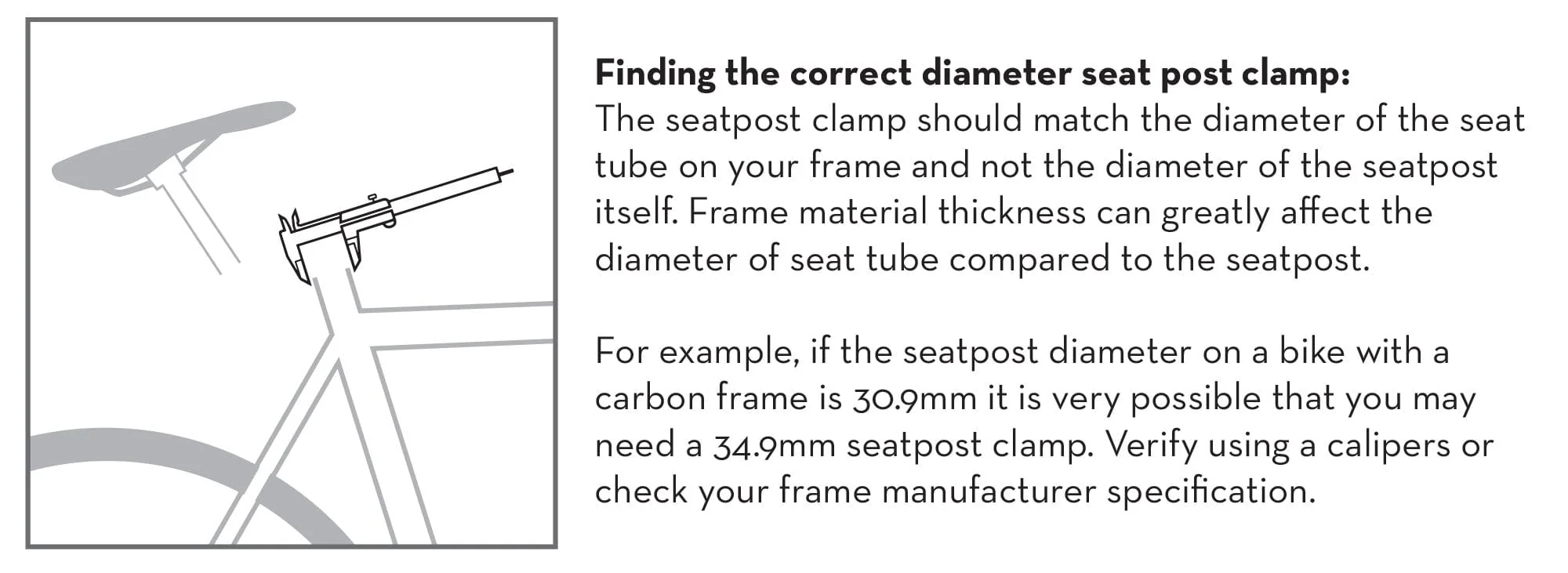

Note: The seatpost clamp should match the diameter of the seat tube on your frame and not the diameter of the seatpost itself.

Related Products

• Color Accents
• Quick Release Seat Post Clamps
• Seat Post Clamp Replacement Parts

Tech Specs

Weight:  29.8mm • 18g  |  31.8mm • 19g  |  34.9mm • 20g  |  36.4mm • 20g  | 38.6mm • 21g | 39.7 • 24g
Material:  6061 T6 aluminum, M5 stainless steel bolt with integrated washer
Tool interface:  4mm hex key
Torque spec:  6 Nm Max
Made in the USA
