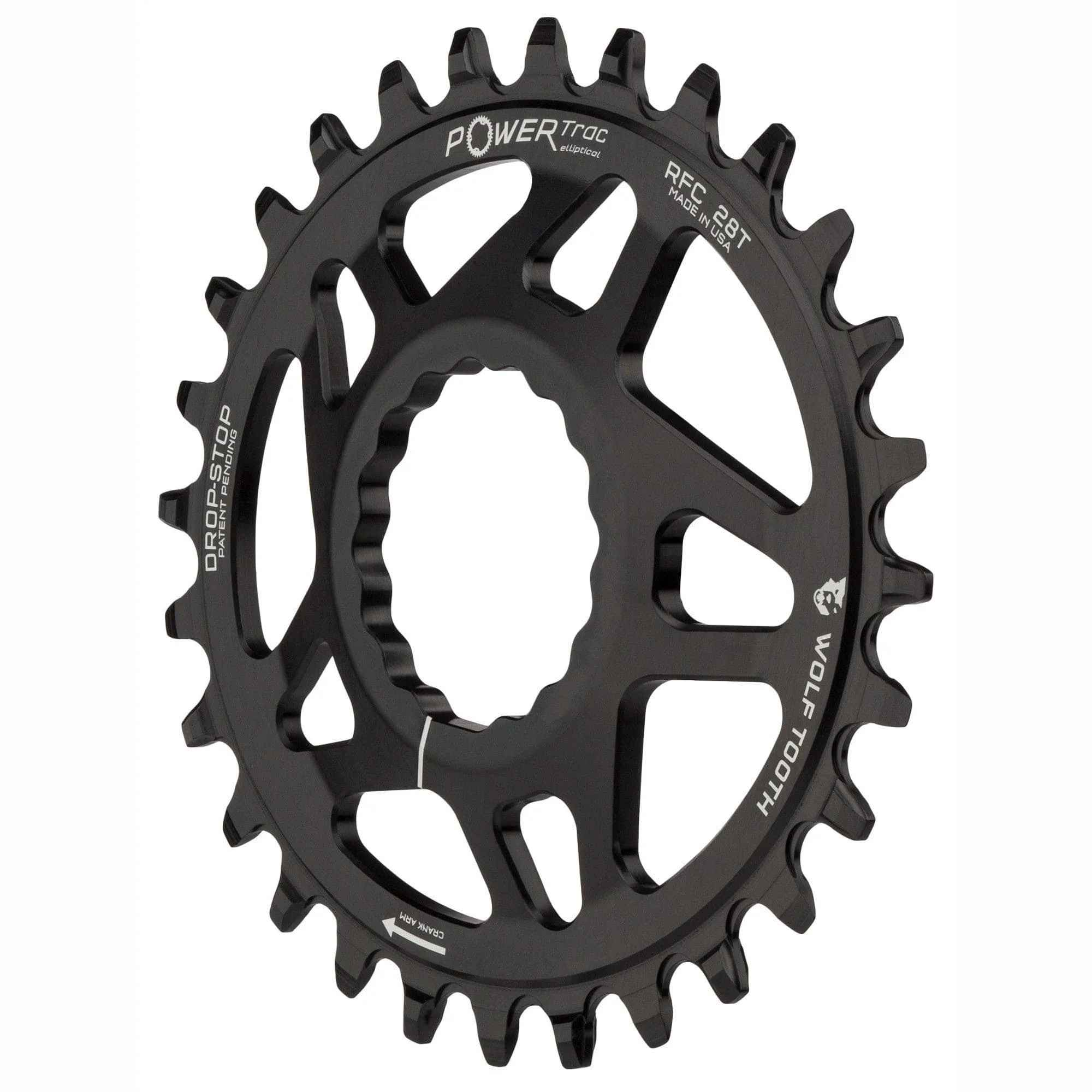

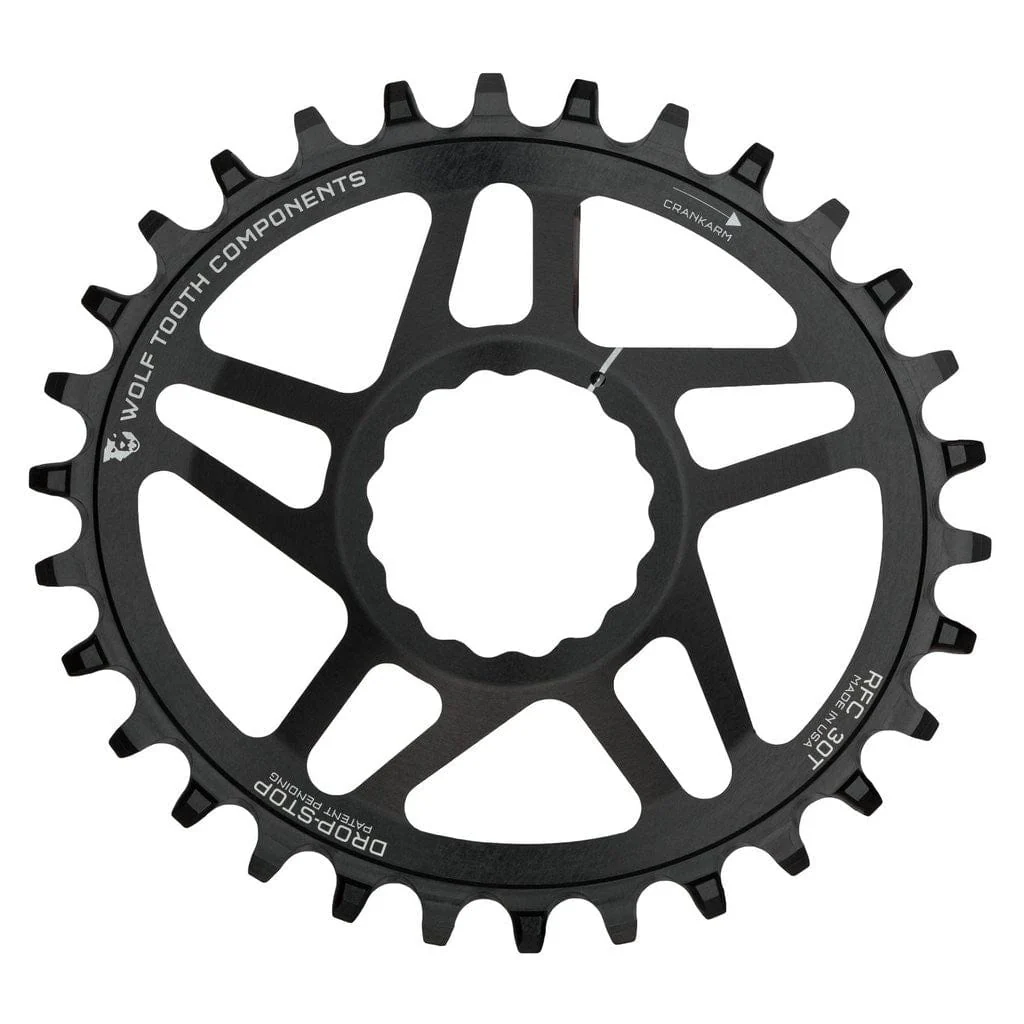

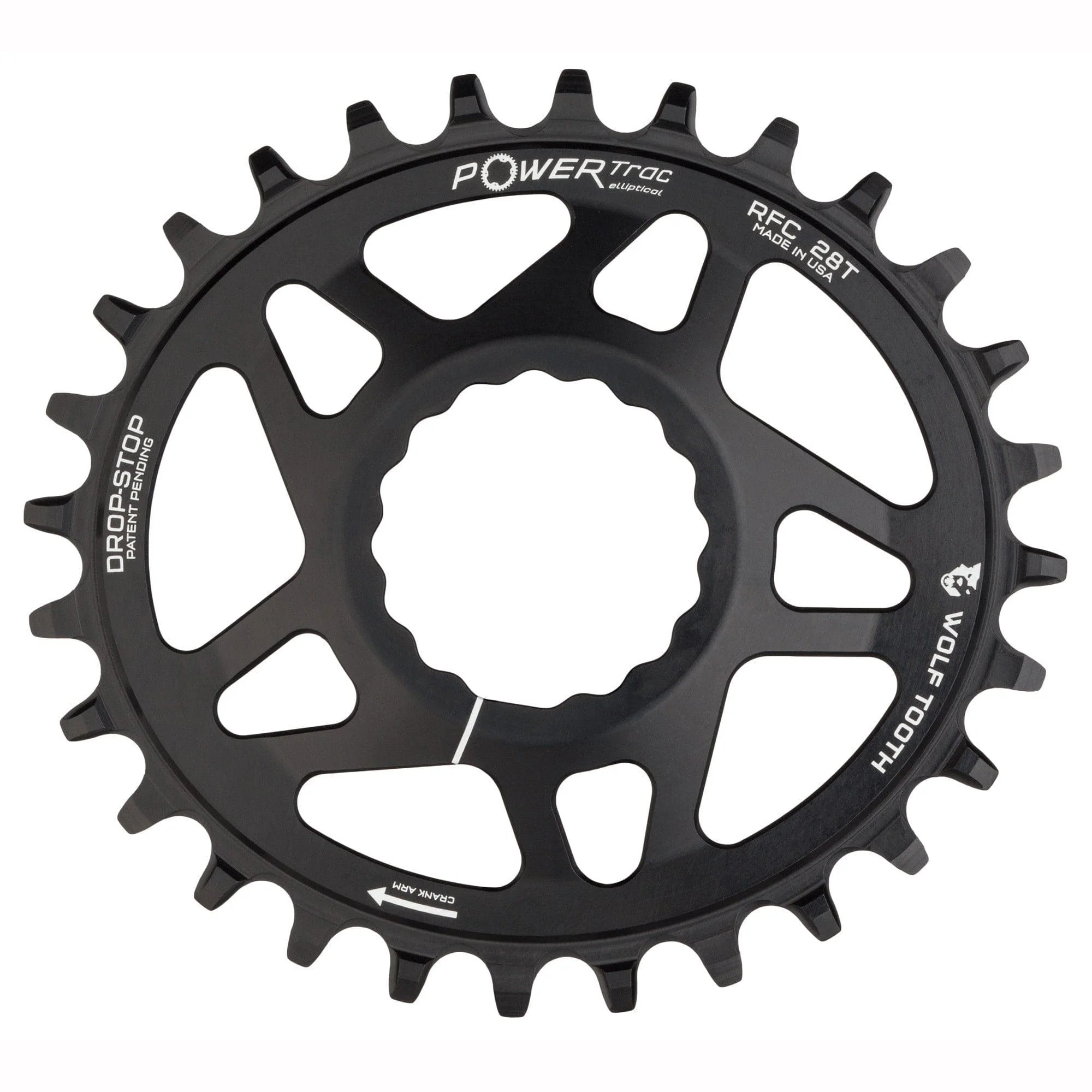

Oval Direct Mount Chainrings for Race Face Cinch - Drop-Stop A
These chainrings are for Race Face Cinch cranks such as Turbine, Next SL, Sixc & Aeffect. The Wolf Tooth Cinch chainrings feature our patented Drop-Stop® tooth profiles for the best wear life, chain retention and mud clearance. We have optimized tooth profiles for all 12, 11, 10, and 9-speed chains.
Compatibility
- Any Race Face Cinchâ„¢ system crankset (including Next SL, Sixc, Turbine, Aeffect)
- Riders using a Cinch crankset with a Super Boost 151mm spindle use a Cinch direct mount 3mm offset chainring.
- Standard (142mm rear hub spacing) 6mm offset and Boost (148mm hub spacing) 3mm offset
- Use a 3mm offset chainring for Super Boost applications running standard drivetrains.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
- Chainline 49mm (standard) and 52mm (Boost)
Recommendations
- If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur! Without these precautions, you may experience chaindrops and/or chainsuck.
Related Products
Tech Specs
Weight: 28t • 54g  | 30t • 58g  |  32t • 63g  | 36t • 72g
Material:Â 7075-T6 aluminum
Made in the USA
Original: $34.00
-70%$34.00
$10.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
These chainrings are for Race Face Cinch cranks such as Turbine, Next SL, Sixc & Aeffect. The Wolf Tooth Cinch chainrings feature our patented Drop-Stop® tooth profiles for the best wear life, chain retention and mud clearance. We have optimized tooth profiles for all 12, 11, 10, and 9-speed chains.
Compatibility
- Any Race Face Cinchâ„¢ system crankset (including Next SL, Sixc, Turbine, Aeffect)
- Riders using a Cinch crankset with a Super Boost 151mm spindle use a Cinch direct mount 3mm offset chainring.
- Standard (142mm rear hub spacing) 6mm offset and Boost (148mm hub spacing) 3mm offset
- Use a 3mm offset chainring for Super Boost applications running standard drivetrains.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
- Chainline 49mm (standard) and 52mm (Boost)
Recommendations
- If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur! Without these precautions, you may experience chaindrops and/or chainsuck.
Related Products
Tech Specs
Weight: 28t • 54g  | 30t • 58g  |  32t • 63g  | 36t • 72g
Material:Â 7075-T6 aluminum
Made in the USA
