Direct Mount Chainrings for SRAM 8-Bolt Gravel / Road Cranks

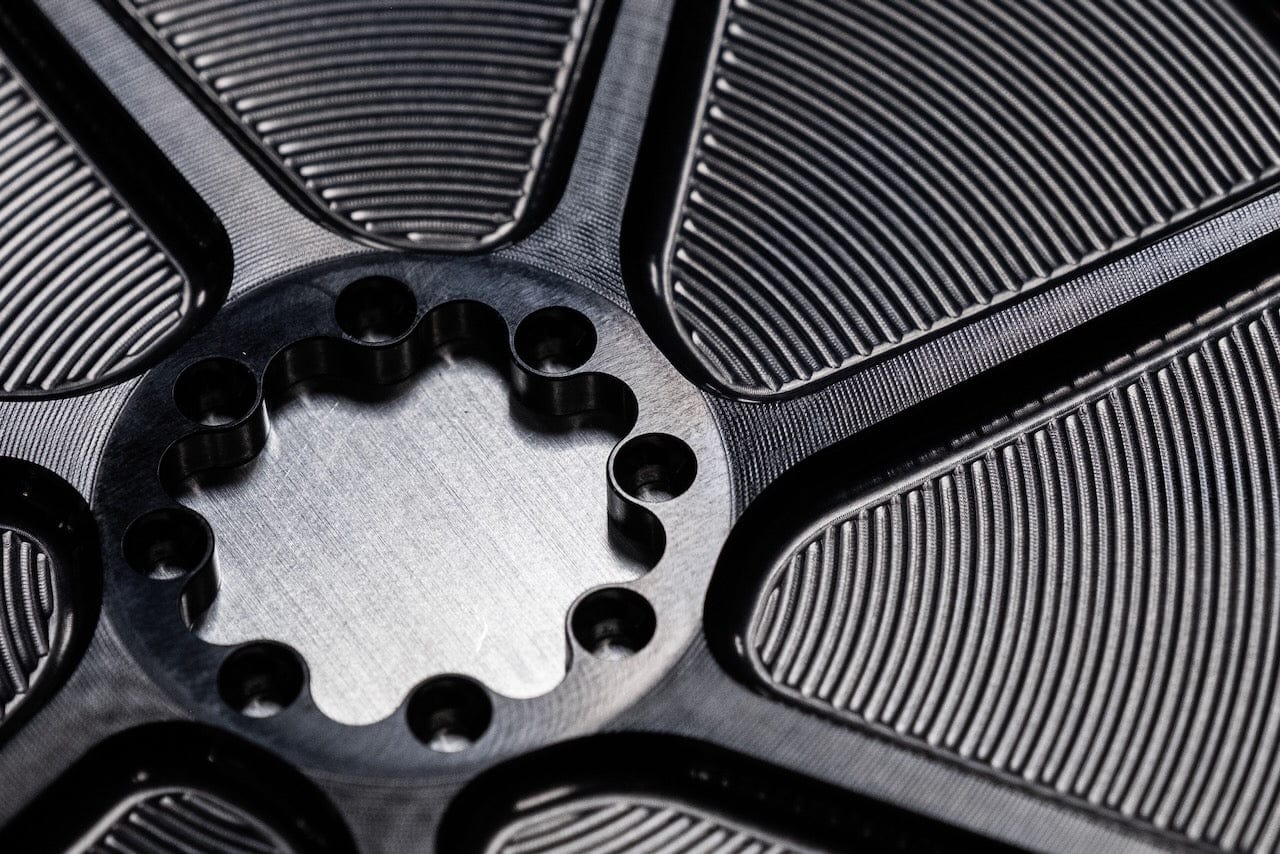

Wolf Tooth Direct Mount Chainrings for SRAM 8-bolt Cranks replace your existing spider and chainring with one clean looking, lightweight, and stiff piece of machined billet. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance. Drop-Stop B is optimized for SRAM Eagle and Flattop chains.
Compatibility

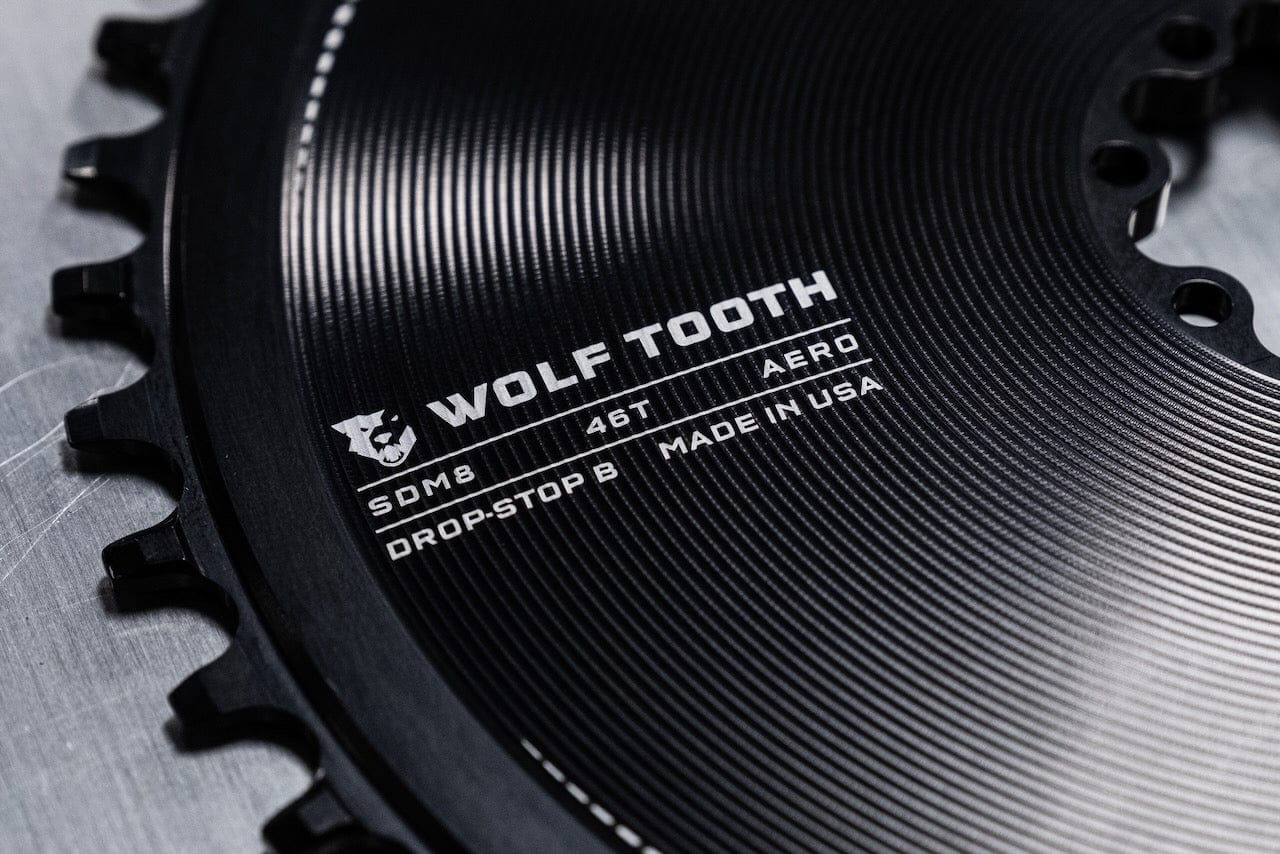

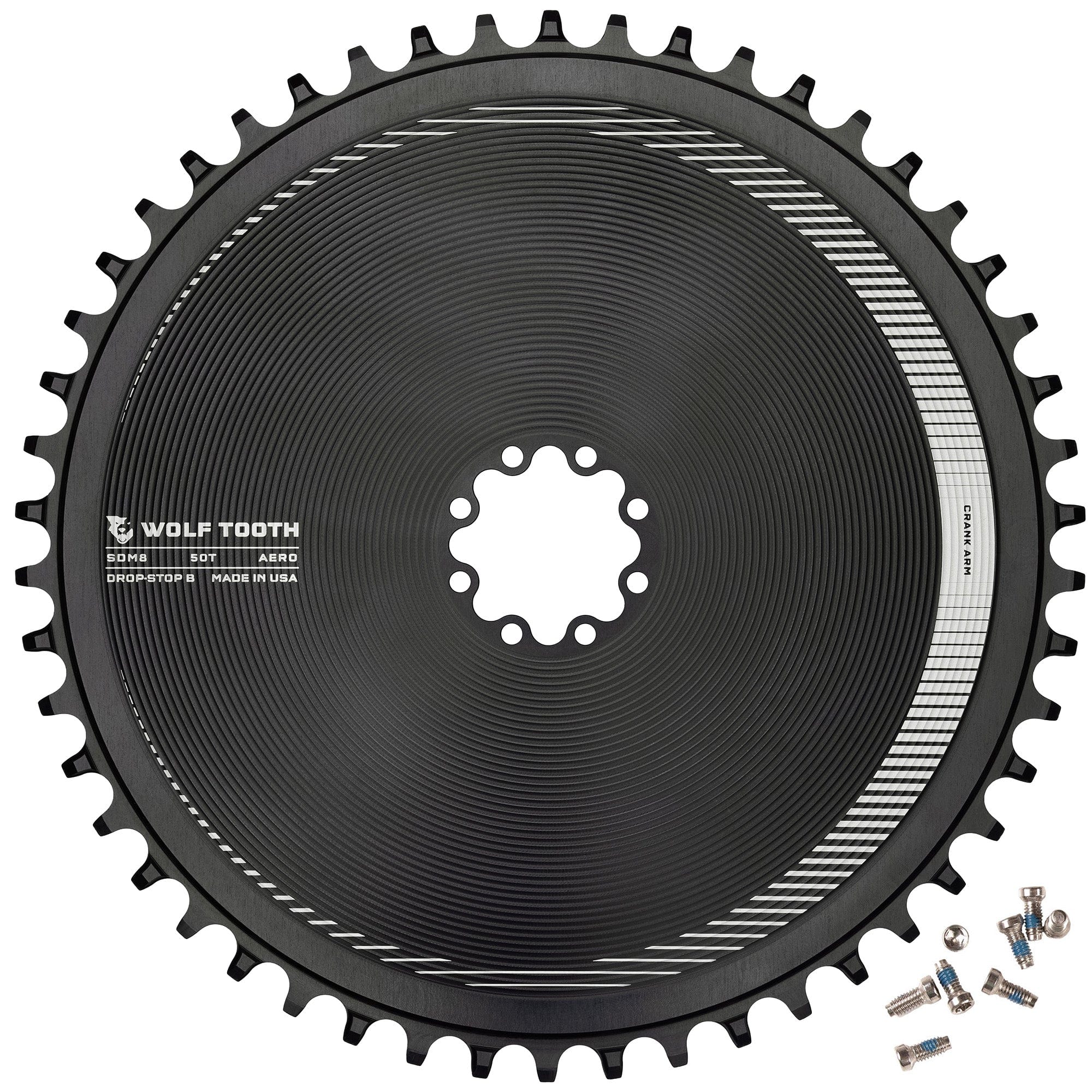

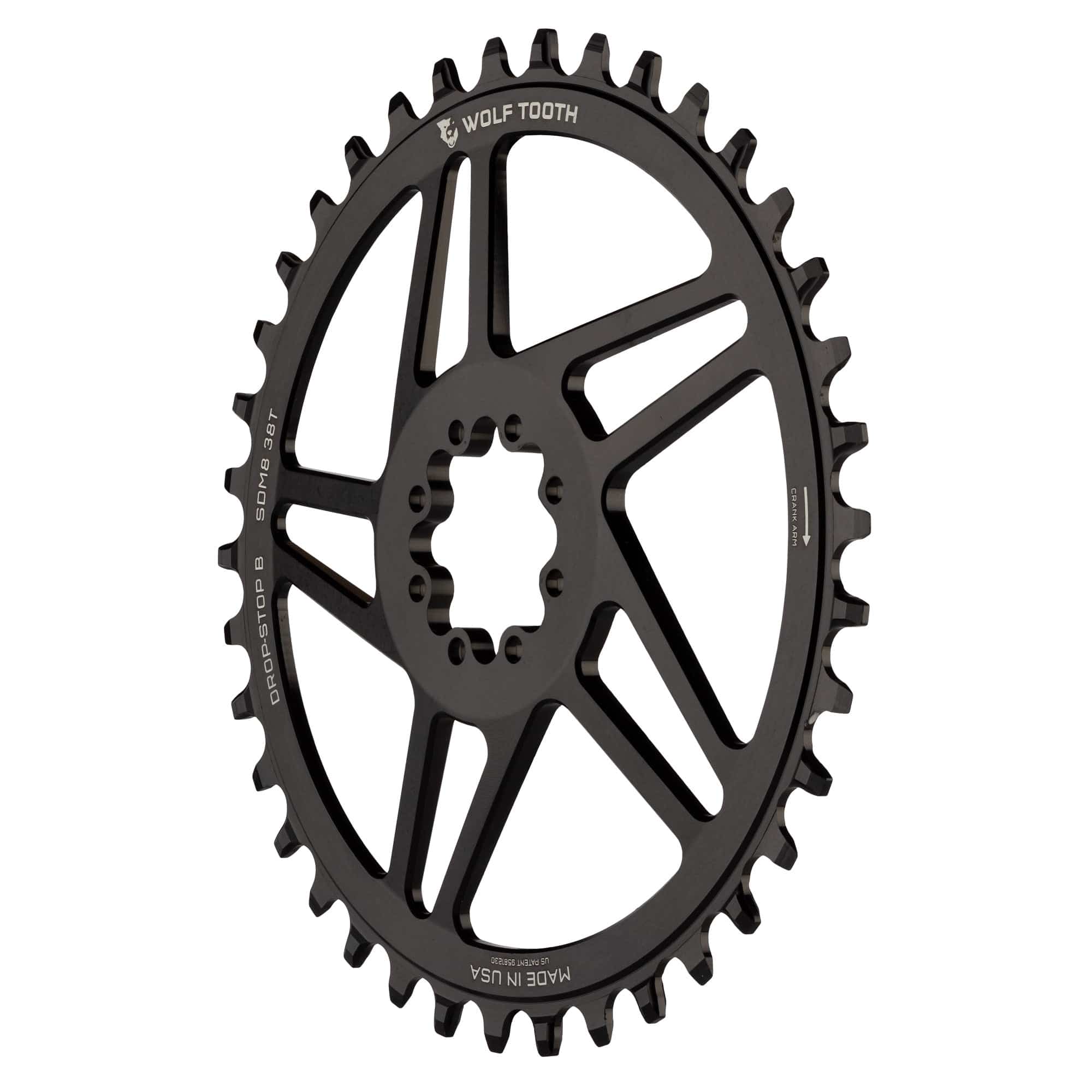

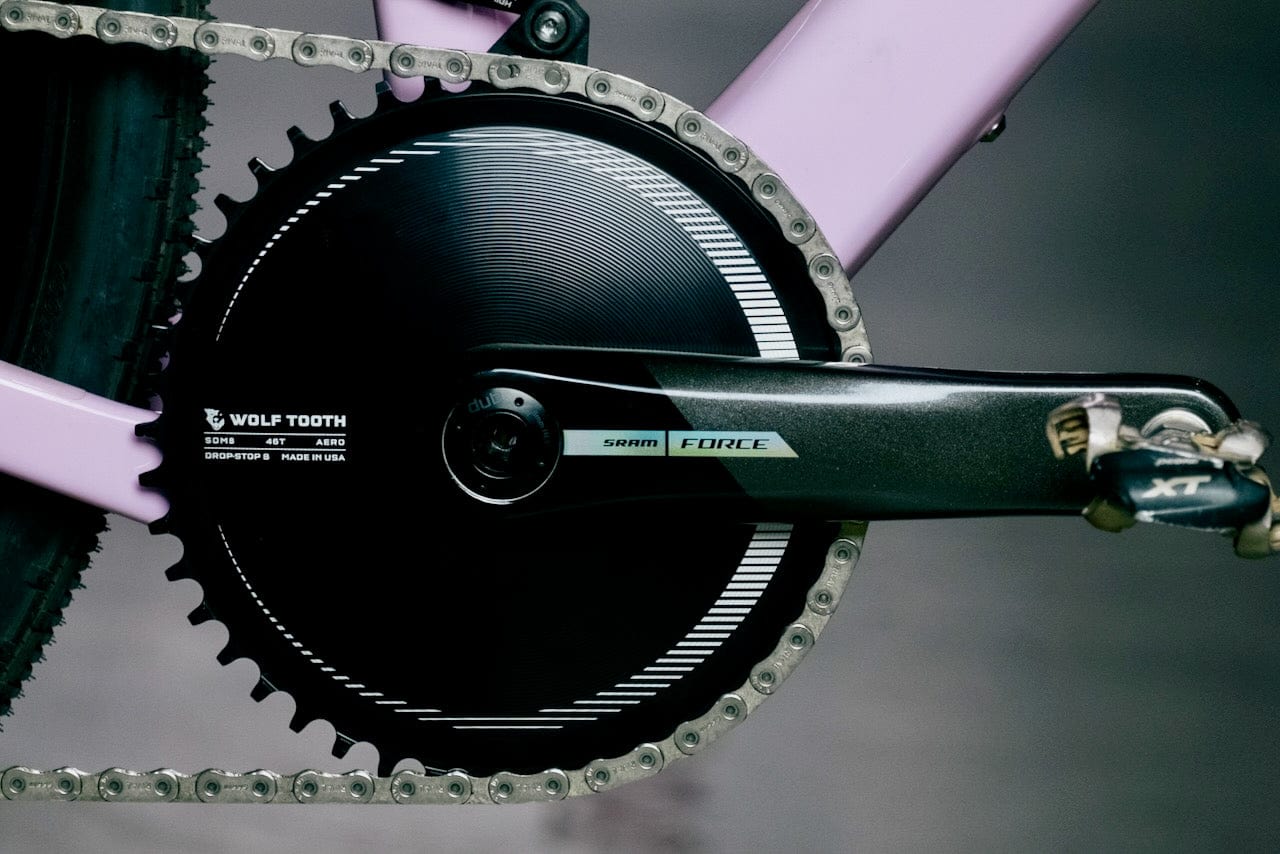

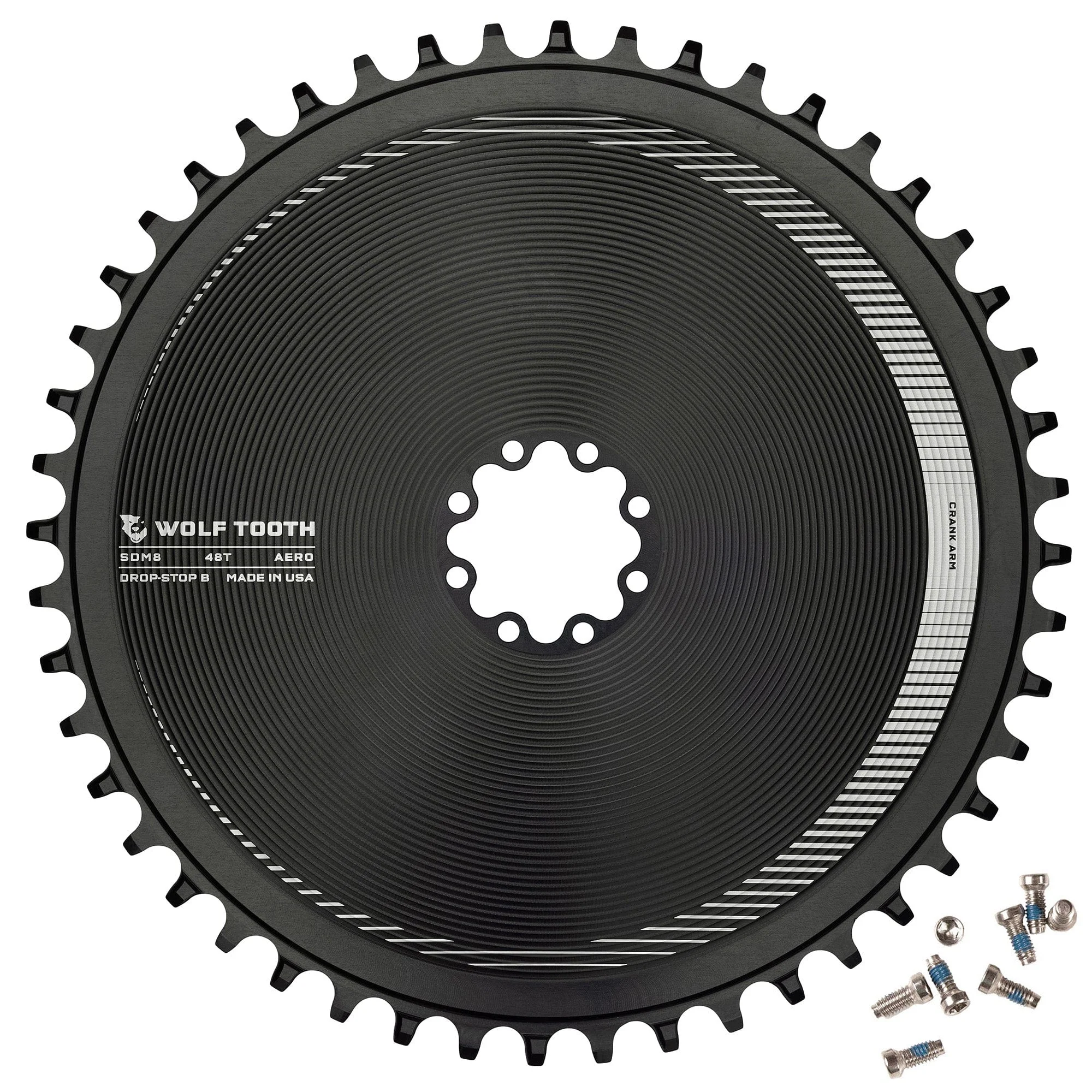

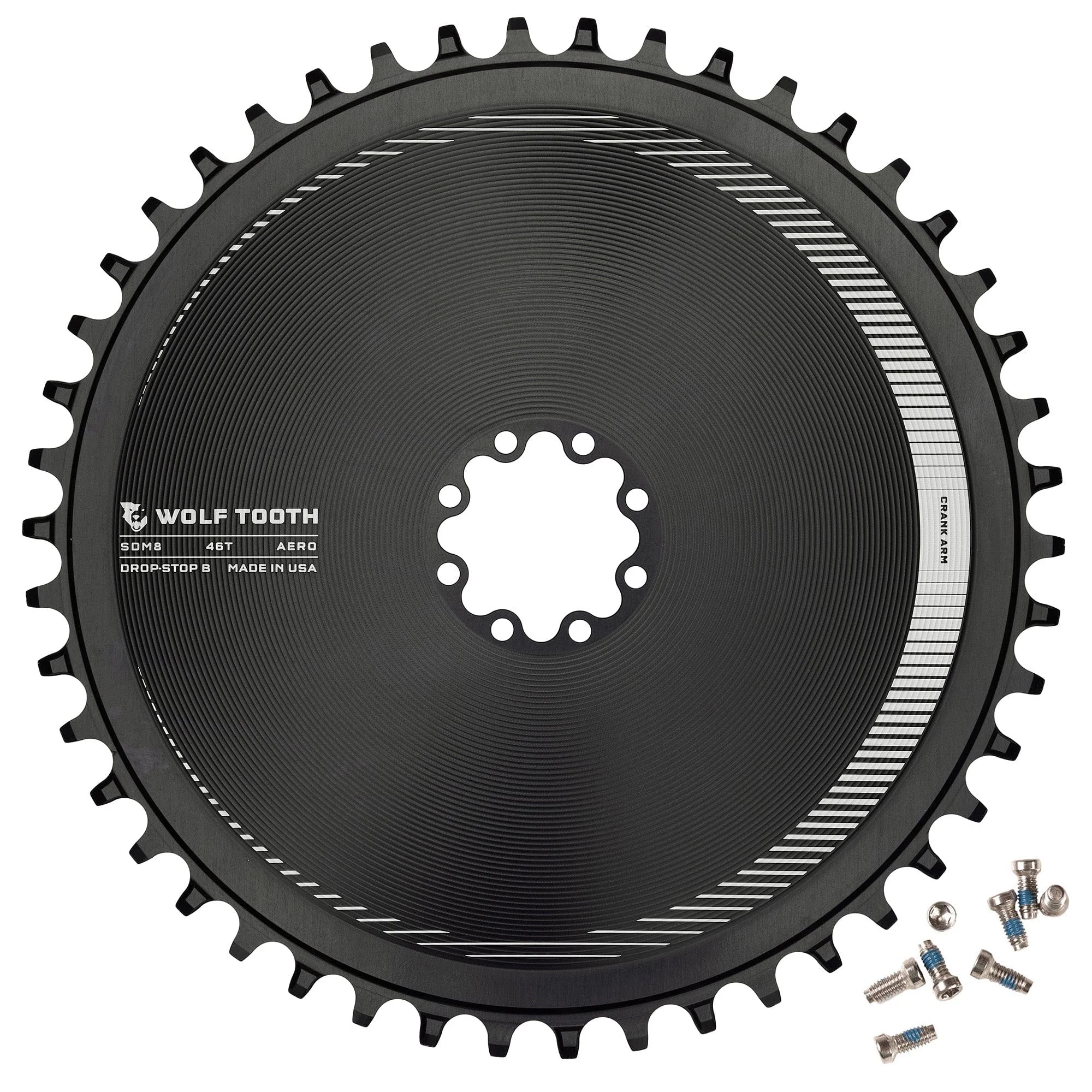

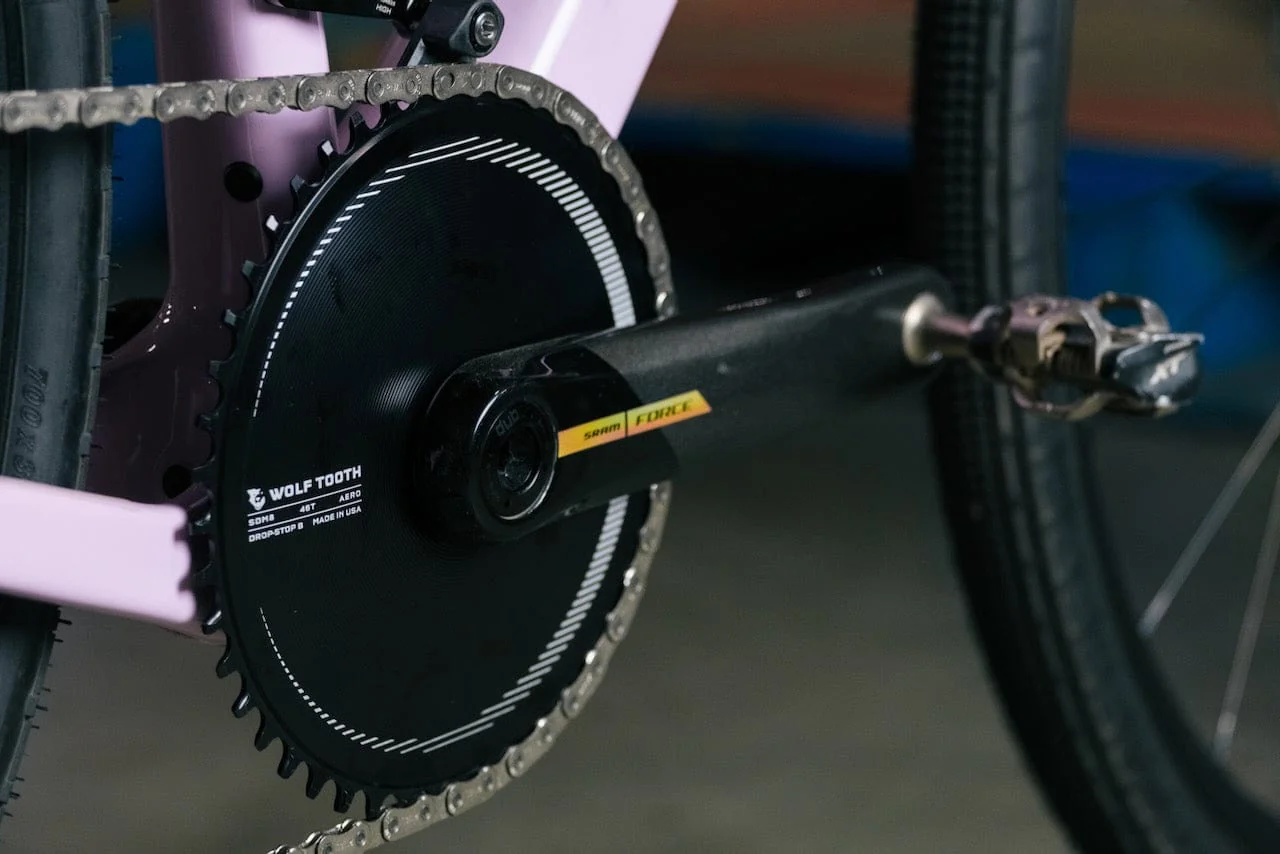

- Aero chainrings available in 46-52T. Sizes 38-44T are non-aero.

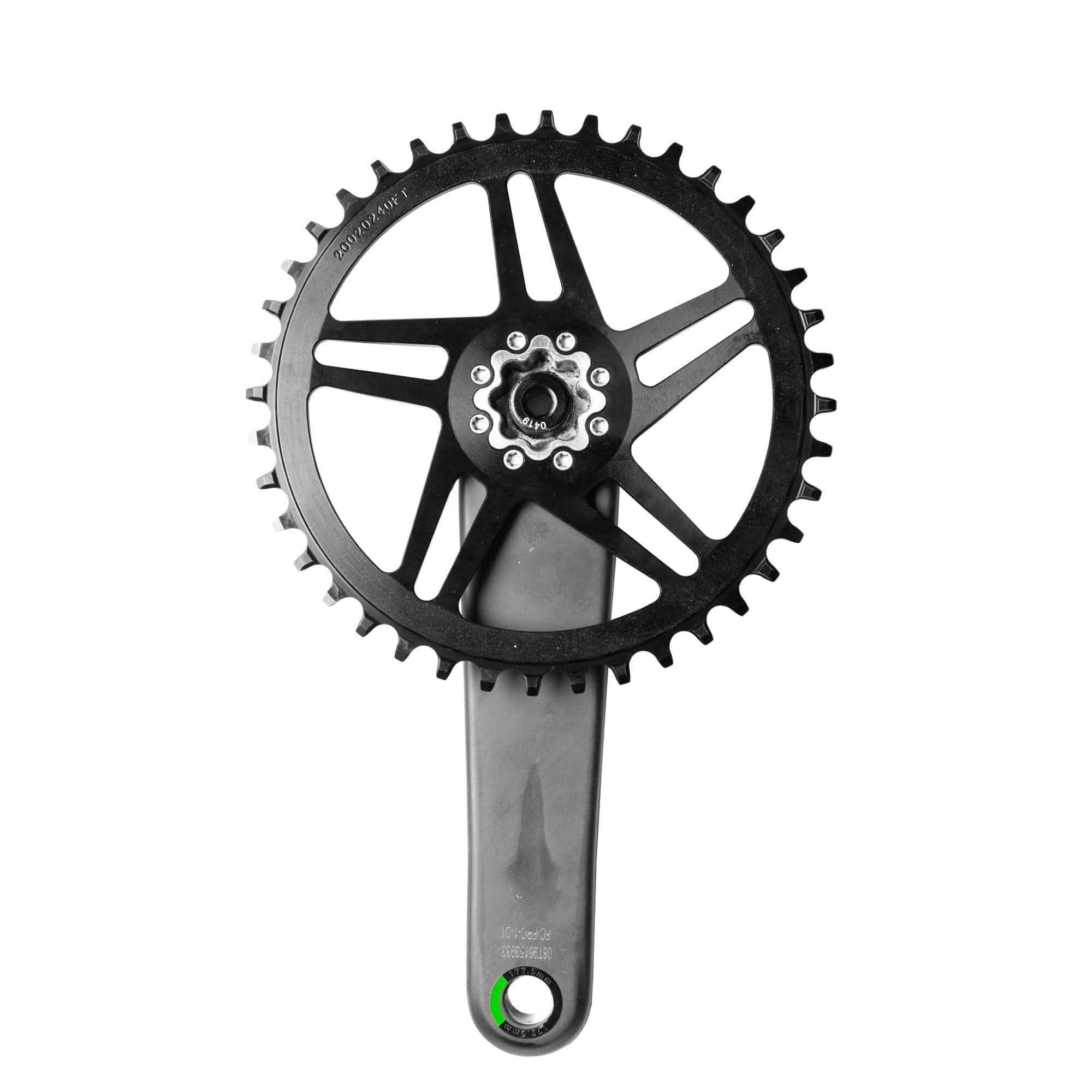

- These direct mount chainrings will replace your existing chainring and spider or replace the direct mount chainring for SRAM AXS cranksets, 2025 Cane Creek eeWings Titanium Cranks (8-bolt), and other cranks that use the 8-bolt mounting standard.

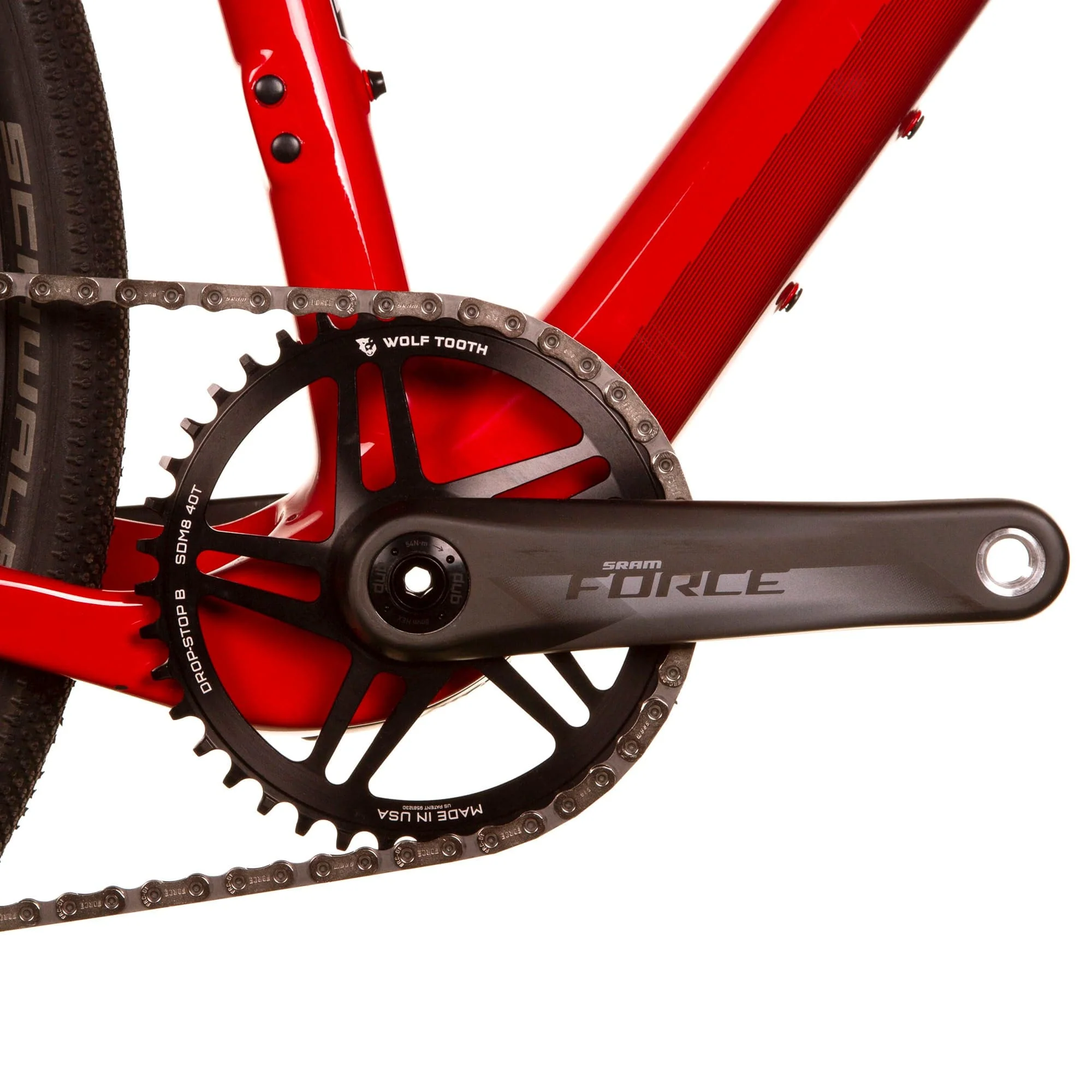

- SRAM Direct Mount DUB road cranksets use the 8-bolt mounting standard. Any of those cranksets with a removable spider also use the 8-bolt mount.
- Compatible with SRAM 12-speed and 13-speed groupsets including SRAM Red XPLR AXS.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud-shedding ability.
- Chainline is 45mm on standard spindle cranks and 47.5mm on wide spindle cranks.Â
Â
Recommendations
- Recommend the use of a clutch-style rear derailleur for the best chain security
- For Installation, use the included custom T20 bolts. Torque to 4Nm with a T20 bit.
Tech Specs
Weights: 38T • 89g | 40T • 106g |  42T • 109g | 44T • 111g | 46T • 142g | 48T • 152g | 50T • 164g | 52T • 174g |Â
Material: 7075-T6 aluminum
Material: 7075-T6 aluminum

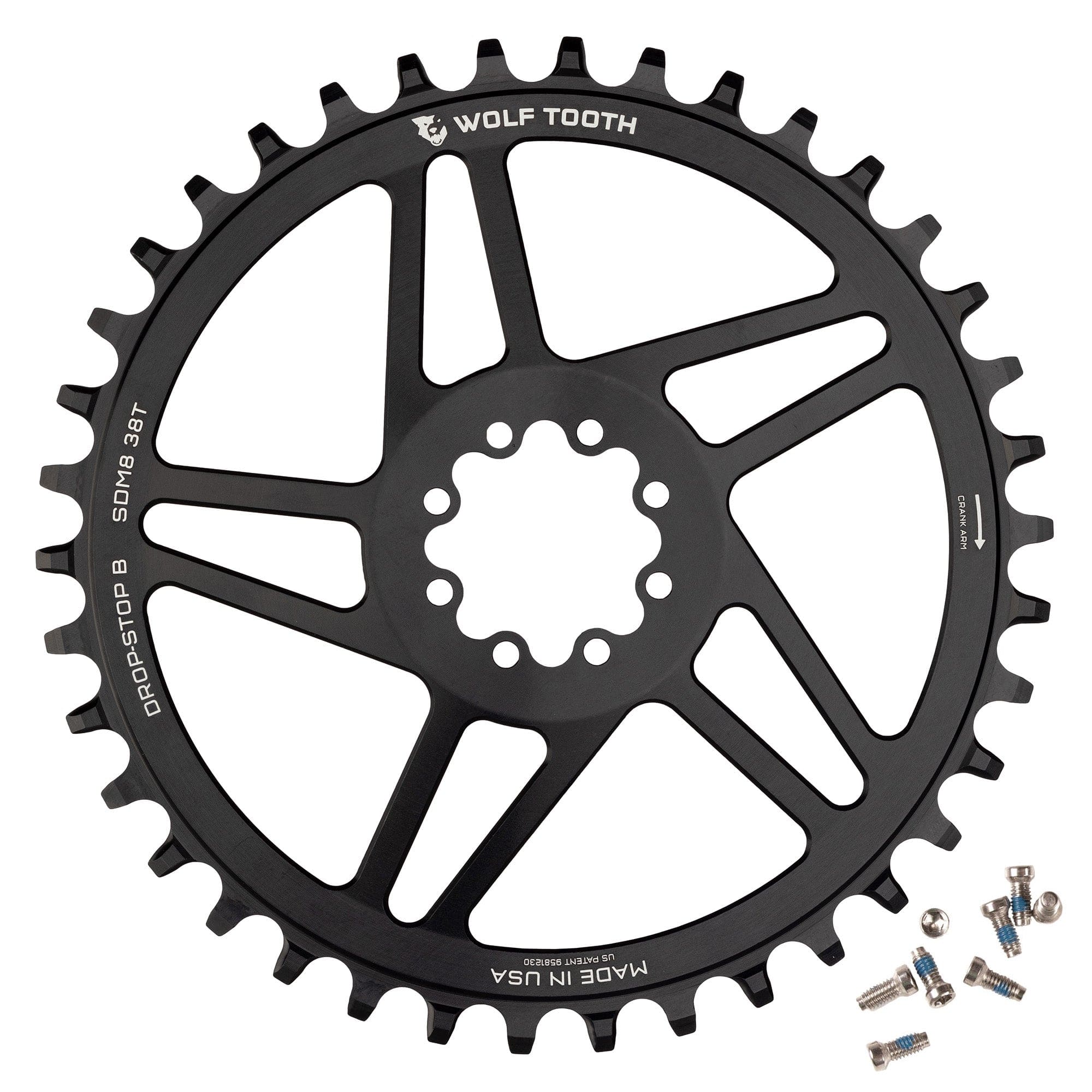

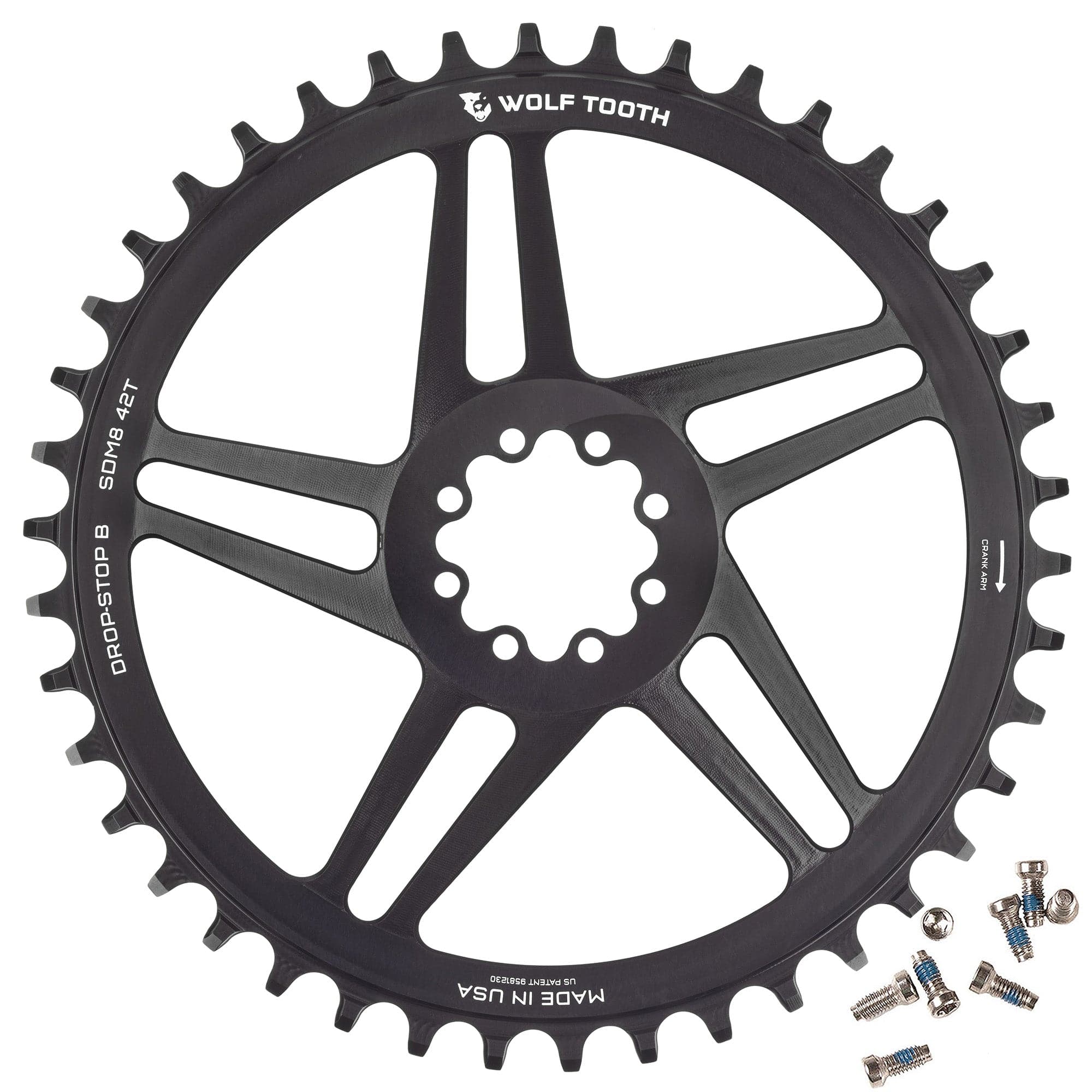

Included:Â set of eight custom T20 stainless steel bolts
Made in the USA
Â
Made in the USA
Â
